| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | TMTeck |
| मॉडल संख्या: | TS18 |
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | दफ़्ती |
| प्रसव के समय: | 4-6 कार्य दिवस |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन, पेपैल |
| आपूर्ति की क्षमता: | 100 पीसी / एक सप्ताह |
| केबल लंबाई: | 2.5m/8.2ft | आकार में छोटा: | बेहद छोटी जगह में निरीक्षण करना आसान है। |
|---|---|---|---|
| आकार ((LxWxH): | LxWxH:13x10x23(मिमी)LxWxH : 0.51×0.39×0.91 (इंच) | ||
| प्रमुखता देना: | TS18 ultrasonic transducer probe,small footprint ultrasonic transducer,high performance TS18 probe |
||

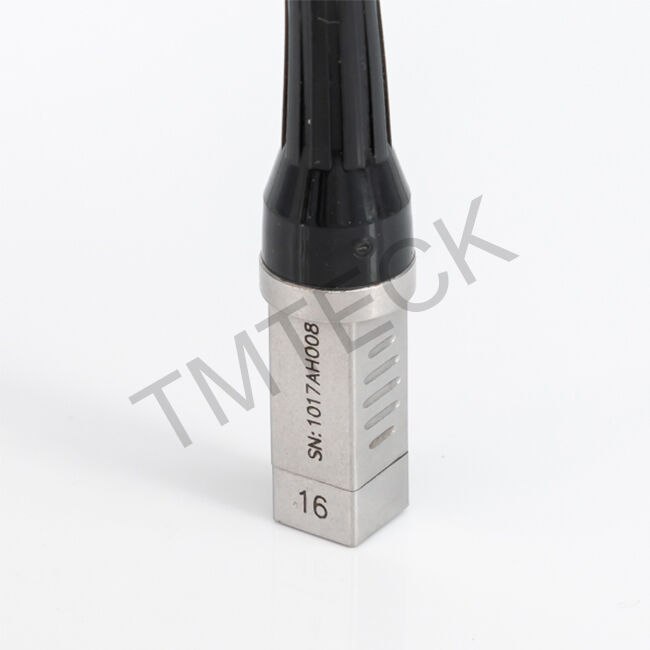

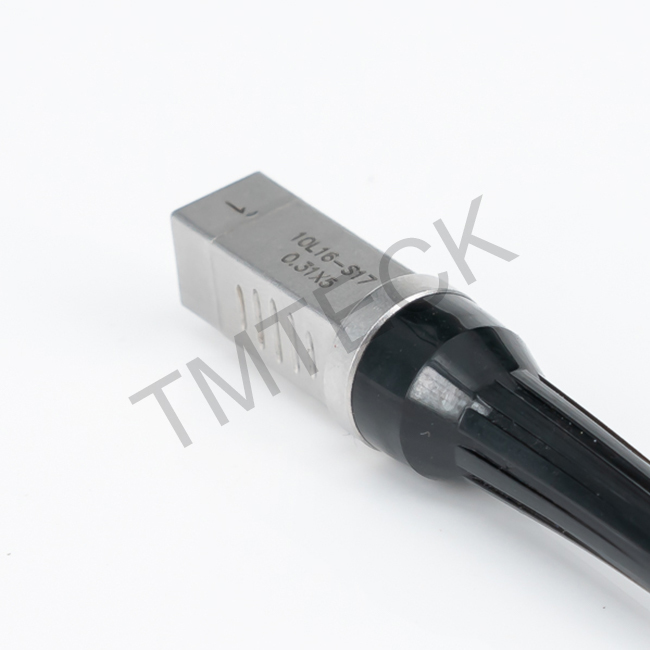

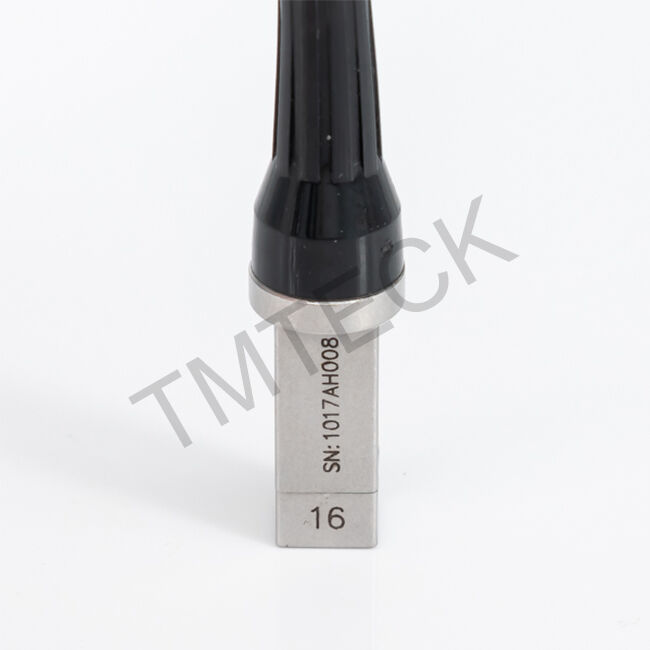

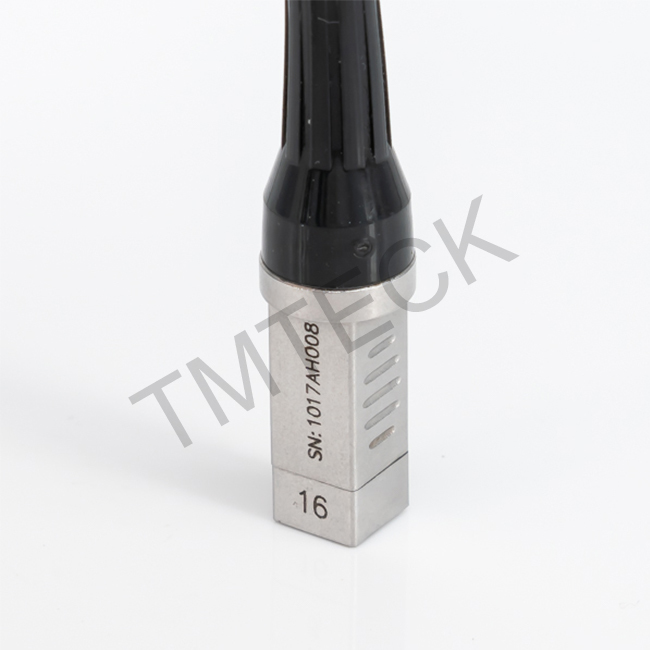

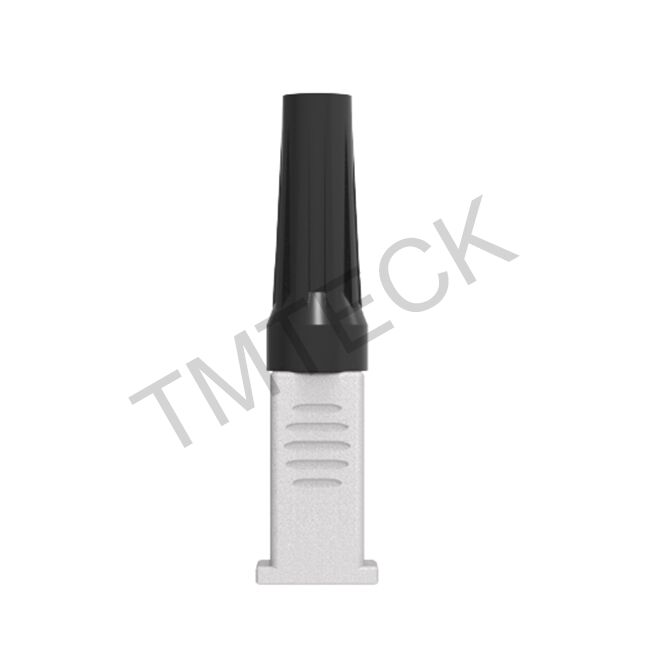

Small-footprint Probe: Smaller size probe with case dimension minimum to 0.31x0.31x0.91 inch, widely used in the aviation field, or some small parts.
Advantages
1.High compatibility, can be compatible with most phased array flaw detection units.
2. High Performance: Good Pk-to-Pk Sensitivity and SNR, quick to detect and locate defects.
3.Smaller in Size: Easy to inspect in extremely small space.
4.Wide Application: Widely used in castings, forgings, pipes, tubes, and machined and structural components for cracks and weld defects.

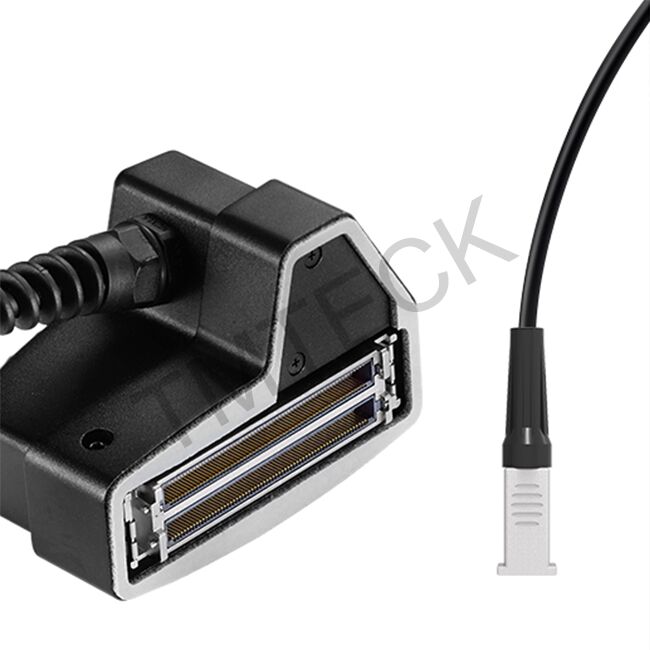

5.Multiple cable connection type: Top cable connection or side cable connection.
Applications
1.Aircraft scratches, rotors, hubs, etc.
2.Detect and quantify defects
3.Inspect castings, forgings, pipes, tubes, and machined and structural components
4.Cracks and weld defects
Probe Specification
| Probe Series |
Model |
Compatible Model |
Element Shape |
Freq (MHz) | E-Nos | Pitch (mm) |
Active (mm) |
Elev.(mm) | Size(LxWxH) |
| TS18/A0 | 2.25L10-0.6x6 | 2.25L10-6x6 | Linear | 2.25 | 10 | 0.60 | 6.0 | 6.0 |
13x10x23 (mm) (in) |
| 5L10-0.6x6 | 5L10-6x6 | Linear | 5 | 10 | 0.60 | 6.0 | 6.0 | ||
| 7.5L10-0.6x6 | 7.5L10-6x6 | Linear | 7.5 | 10 | 0.60 | 6.0 | 6.0 | ||
| 10L10-0.6x6 | 10L10-6x6 | Linear | 10 | 10 | 0.60 | 6.0 | 6.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized, including frequency, element number and pitch, aperture, etc.
Wedge Specification
| Probe Series | Model | Compatible Model | Element Shape | Size(LxWxH) |
| TS18/A0 | N0L | 0°LW | -30°~30° | LxWxH:13x10x23(mm)LxWxH : 0.51x0.39x0.91 (in) |
| N45L | 45°LW | 40°~70° | ||
| N45S | 60°SW | 40°~70° | ||
| N60S | 60°SW | 40°~70° | ||
| N60S-IHC | 60°SW | 40°~70° | ||
| N60S-AOD100 | 60°SW | 40°~70° | ||
| N60S-IHC-AOD100 | 60°SW | 40°~70° |
