| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | TMTeck |
| मॉडल संख्या: | टीएस28 आर1 |
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | दफ़्ती |
| प्रसव के समय: | 25 कार्य दिवस |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन, पेपैल |
| आपूर्ति की क्षमता: | 100 पीसी/एक सप्ताह |
| मॉडल संख्या:: | 2.25C16-1.0x8-TS28/2.25C16-16.0x8-R1 | तत्व: | 16 |
|---|---|---|---|
| तत्व आकार: | नतोदर | आवेदन: | समग्र प्लेट निरीक्षण |
| अनुकूलन: | हाँ |

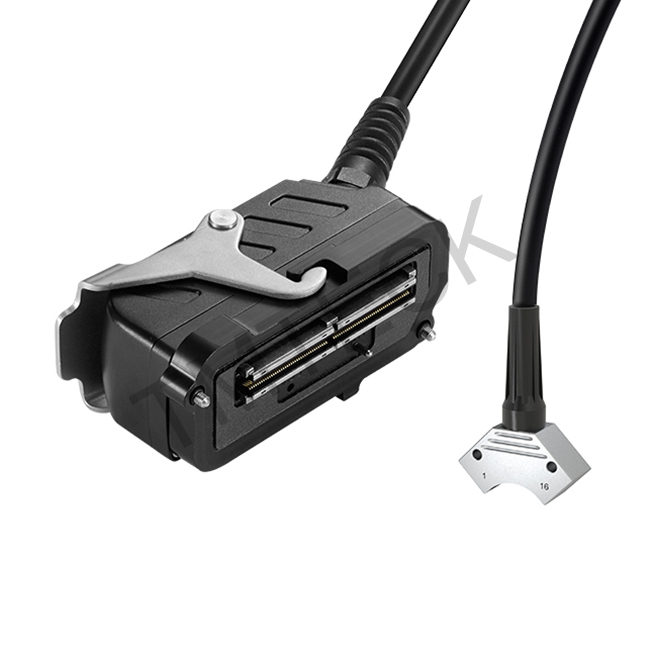

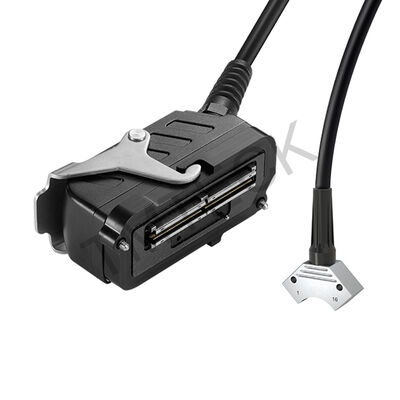

Concave probe: the detection is more stable, the concave array design is better to match the detection components, and is widely used for CFRP corner detection.
Advantages
1.Near-wall probes have shorter dead zones at both ends
2.Widely used in composite channel inspection
3.Can be used for C-scan detection of composites (delamination, debonding and porosity)
4.Automatic and manual scanning
Applications
1.Composite plate inspection
2.Immersion scanning area coverage
3.Plates, billets and bars
4.Disks, axles and shafts
Specification
| Probe Series |
Model |
Compatible Model |
Element Shape |
Freq (MHz) | E-Nos | Pitch (mm) |
Active (mm) |
Elev. (mm) |
Size(LxWxH) |
| TS28/R1 | 2.25C16-1.0x8 | 2.25C16-16.0x8 | Concave | 2.25 | 16 | 1.00 | 16.0 | 8.0 |
23.5x14x23.5(mm) 0.93x0.55x0.93(in) |
| 3.5C16-1.0x8 | 3.5C16-16.0x8 | Concave | 3.5 | 16 | 1.00 | 16.0 | 8.0 | ||
| 5C16-1.0x8 | 5C16-16.0x8 | Concave | 5 | 16 | 1.00 | 16.0 | 8.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Quick Details
Model Number:2.25C16-1.0x8-TS28/2.25C16-16.0x8-R1
Element:16
Element Shape:Concave
Size:R10.2,LxWxH 23.5x14x23.5(mm)0.93x0.55x0.93(in)
Application:Composite plate inspection
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
