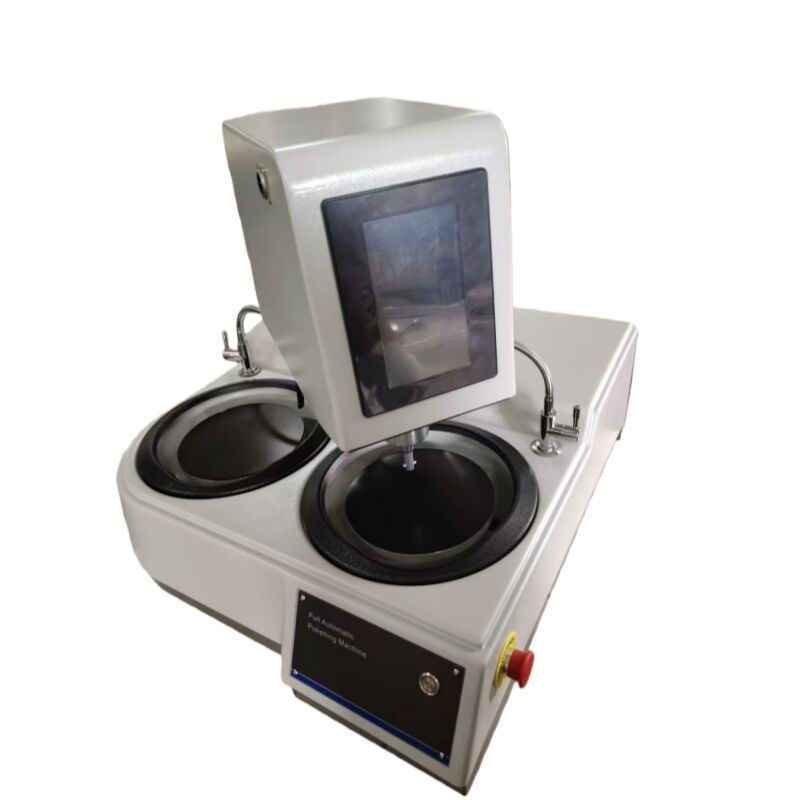

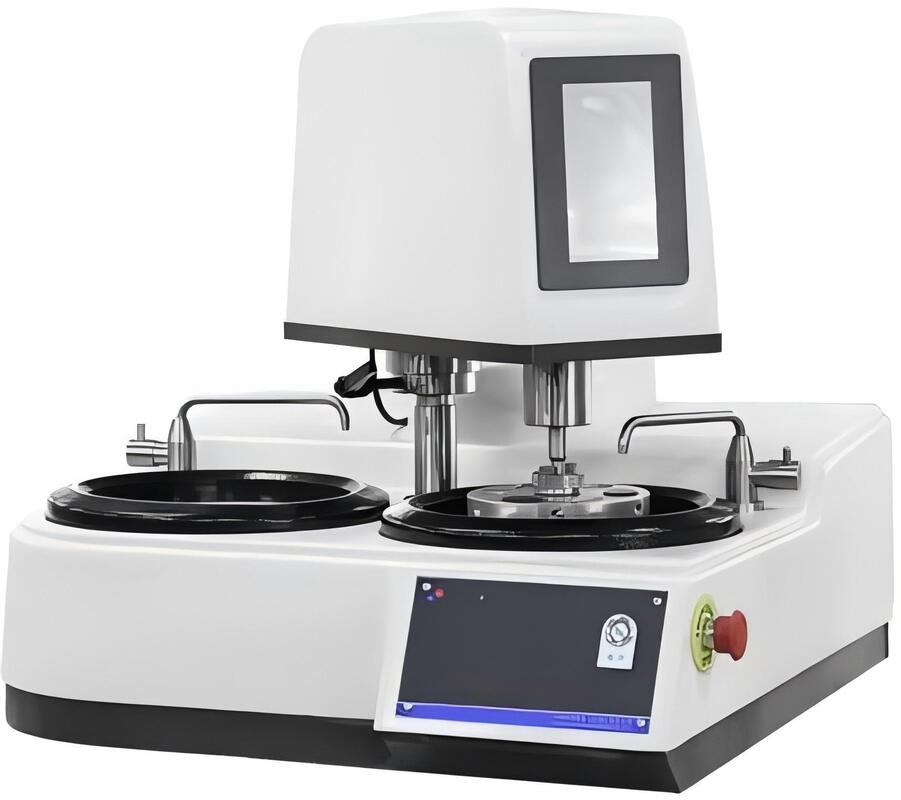

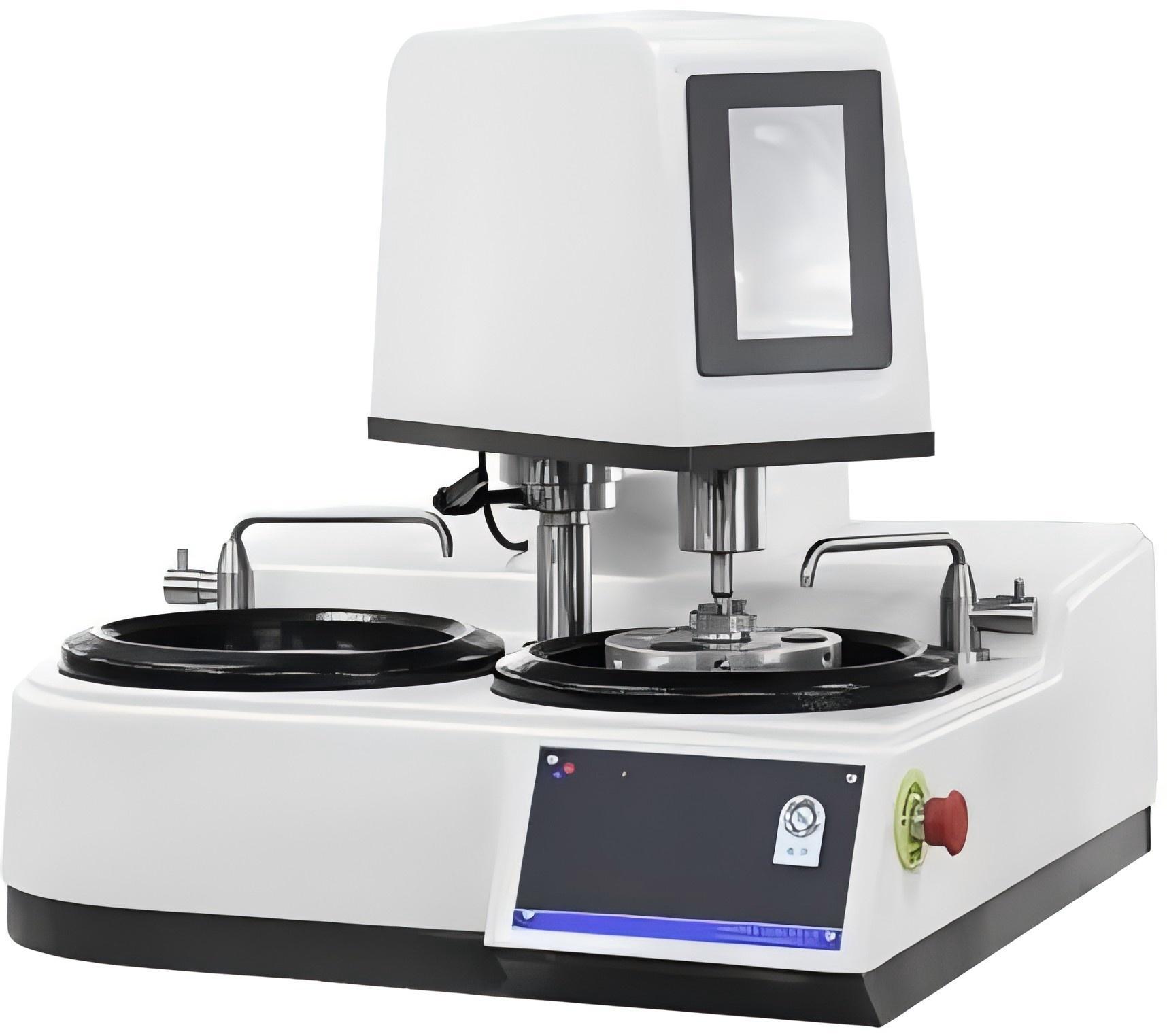

TMP-20SC Fully automatic metallographic grinding and polishing machine (center pressure)
1. Center loading force mode, fixed six samples at one time, complete the whole grinding and polishing process, to ensure that the grinding throws out the complete plane of each sample
2. Independent control of grinding and polishing plate and sample plate: speed, grinding and polishing time, rotation direction, water valve closing and other grinding and polishing parameters;
3. Touch screen interface: grinding and polishing parameter setting is convenient, status display is intuitive, simple operation;
4. The loading force can be adjusted in operation, flexible and convenient.
5. By using the solenoid valve to control the water on and off.6. Easily replace the magnetic anti-stick disk, you can complete the rough, fine grinding and rough, fine polishing of all kinds of samples, a disk is equivalent to N disks.
7. High precision, smooth operation, low noise.
8. Sample grinding layer thickness control: accurately control the amount of sample grinding, grinding to the specified position (optional);
9. External dropper control: drop speed and drop material of external dropper (optional);
|
specification |
TMP-20SC |
|
Station |
Double platter |
|
Working disc diameter |
Standard φ254mm (optional φ203/φ230mm, customizable φ304mm) with magnetic transfer disk system |
|
Grinding disk speed |
100-1000 RPM forward and reverse steering can be switched |
|
Grinding head speed |
30-200r/min |
|
Sample preparation time range |
0-9999s |
|
Loading force range |
30-200N |
|
Loading force mode |
Center loading |
|
Sample holder |
Six φ30mm as standard (optional φ40-φ50mm four, the rest can be customized) |
|
Power Supply |
AC220V, 50HZ |
|
Motor power |
0.75 Kw |
|
Overall dimensions (length * width * height) |
760 x 730 x 700 |
|
Weight |
120kg |
III, Standard accessories (this list is for reference, the type or quantity of accessories is subject to the contract)
|
Name |
Quantity double disk |
Name |
Quantity double plate |
|
Waterproof ring |
/2 |
Sandpaper with glue(250)320# |
10 sheets |
|
Gripper |
1 set |
Sandpaper with glue(250)1000# |
10 sheets |
|
Allen wrench 4mm |
1 |
Polished cloth velvet with back glue(250) |
1 sheet |
|
Allen wrench 5mm |
A handful |
Anti-stick dish(250mm) |
2 sheets |
|
Water inlet pipe 8mm |
1 |
Work plate with magnetic(250mm) |
2 sheets |
|
Drain pipe 25mm |
1 |
Clothes hook |
1 |
|
Power adapter cable |
1 |
Quick screw joint SNZ08-04 |
1 |
|
Data adapter cable |
A root |
Throat band 18-32 |
1 |
|
Raw material tape |
1 stick |
Delta valve 4 points |
1 |
|
Diamond suspended polishing liquid 6 microns 200ml |
1 bottle |
Rubber pad with strainer 4 points |
1 |
|
Polishing lubricated coolant Blue 200ml |
1 bottle |
4 point strainer(60 mesh double layer) |
4 |
|
Stylus |
one |
Mounting table |
1 |
|
Technical documents:1,user manual 2,product certificate |
|||
IV, Optional accessories
1. Sample grinding off layer Thickness controller: resolution accuracy 0.01 mm
2.
|
GSC250A |
Metallographic sandpaper 100 pieces/packet Abrasive: black silicon carbide Particle size: P80# 120# 180 # 320 # 600 # 800 # 1000 # 1200 # 1500 # 2000 # Size: Φ250mm water resistant With pasted back, the sandpaper can be fixed directly to the mill |
|
MAGNOMET |
Anti-stick tray 5 pieces/box Diameter: Φ250mm The surface is coated with special anti-stick coating, and the sandpaper or polishing cloth with adhesive backing can be pasted on this disk, which is easy to change and leaves no residual glue. It can be used repeatedly. The disc is used directly on magnetic discs from BUEHLER or STRUERS; Replacement of BUEHLER's MagnoMet and MagnoPad |
|
FT250A |
10 pieces/bag of metallographic polishing fabric Velvet (long pile)/canvas (short pile)/cloth (short pile)/silk (no pile) Φ250mm Pasted back: The fabric can be fixed directly to the mill |
|
DSU |
Diamond suspension grinding polish 500ml/ bottle The diamond is suspended in the liquid and evenly distributed by watering can or automatic drip Particle size: 0.25, 0.5, 1, 1.5, 2.5, 3, 3.5, 5, 6, 7, 9, 10, 14, 15, 20, 28, 40 microns for a variety of materials |
